Industry-Leading KVM
Emerald® PE gives users a seamless desktop experience anywhere on a TCP/IP network with the actual hardware stored in a corporate data center or in the cloud. Deploy PE on standard corporate networks and across WANs, even for media-rich applications, like video and photo editing.
Link TX and RX units in a point-to-point KVM extension over CATx up to 100 meters or even farther using an IP or WAN connection. Or connect multiple TX and RX units to an Emerald or IP matrix switch.
Start small with a point-to-point extension, or scale Emerald infinitely by adding endpoints, with no extra chassis or cards. PE supports up to 32 endpoints. Manage larger systems centrally with Boxilla®.
Easy Migration and Scaling
Scale access infinitely and gradually over an existing network infrastructure.
Outstanding Video Quality
Emerald PE supports pixel-perfect HD DisplayPort video with 1920 x 1080 resolutions, ideal for medical imaging and control rooms.
Virtualization Support
Emerald PE supports VM® and Microsoft®, HyperV®, using RDP 8.1 and RemoteFX.
Simple System Management
Manage bandwidth and user access, deploy new endpoints, update firmware, and more via the RX's OSD or Boxilla, a hardware-based management appliance with a user-friendly, browser-based GUI.
Fail-Safe Operation
Redundant network ports offer 24/7 operation if one network fails. Connect the endpoints via two alternative direct links, a direct link, and a network connection, or two independent networks.
Works with Other KVM Systems
Emerald works with the Emerald product family and these Black Box KVM product families:
- DKM proprietary, direct-connect KVM system
- Freedom II Multi-Monitor Switch with Glide and Switch technology
- ControlBridge, our system for one-touch, multisystem control
- Boxilla KVM Manager
Storage Temperature -4ºF to 140ºF (-20ºC to 60ºC)
Humidity 5 to 95%, noncondensing
Operating Temperature 32ºF to 95ºF (0ºC to 35ºC)
General
OSD Supported PrtScrn, O (default)
Computer Interface Display Port cable, USB Type A to B cable, 3.5mm Audio cable
Hotkey Support PrtScrn (default)
Encryption Secure Sockets Layer (SSL) over a TCP/IP, 128 bit between TX and RX, user set between RX and Hyper-V
Leads Supported Display Port Video, USB Keyboard, Mouse and Peripherals, Audio
PC Selection Point to Point: no interface, always connected
Matrix: Hotkeys (hotkeys can be adjusted in Boxilla)
DDC Support Built in, Cloned from RX
Item Specifications

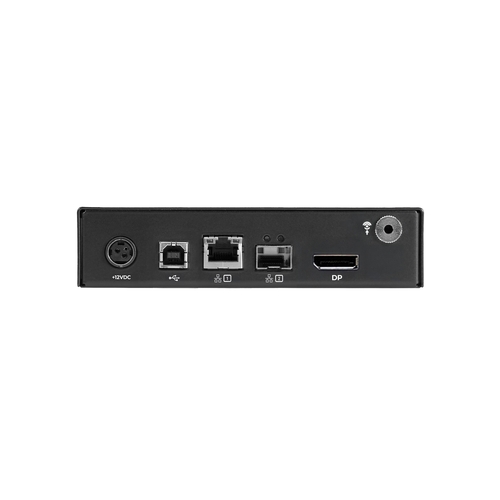

Connectors (1) DisplayPort Input; (1) USB Type-B; (1) RJ45 Network; (1) 3.5mm Audio; (1) SFP Cage; (1) Snap and Lock Power Connector; (1) Micro USB Connector
Dimensions 5.39"W x 6.07"D x 1.32"H (137 x 154.2 x 33.6mm)
Indicators (1) Power LED
(1) Network LED
(1) Video 1 Status LED
(2) Network Interface Status LEDs, RJ45 (Link / Activity)
(2) Network Interface Status LEDs, SFP (Link / Activity)
Weight 0.77 lb. (350g)
Physical
Operating Systems Supported Microsoft Windows 7, 8, 8.1, 10, 11, Server 2003, Server 2008, Server 2012, Server 2019, Linux, Solaris, Mac OS
Distance from Transmitter to Receiver (max.) 328 ft. (100 m), use a network switch to get farther distances
Distance from CPU to Transmitter (max.) 16 ft. (5 m) maximum distance from DisplayPort cable to CPU
Power
Input 100-240 VAC, 50/60 Hz, 1 AMP Max
Power Supply Type IEC320, C14, 5-feet
TAA compliant — YES
EMD2000PE-DP-T

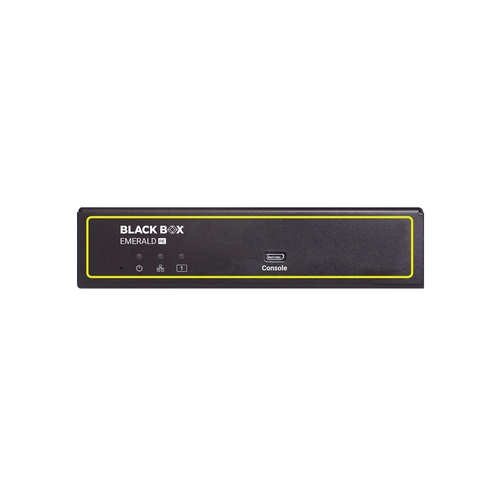

(1) Emerald PE DisplayPort Single-Head Transmitter
(1) Power Supply
(1) Power Cord
(1) USB Type A to B, M/M
(1) Display Port Cables, M/M
(1) Insert to reference BlackBox.com for resources
EMD2002PE-DP-T

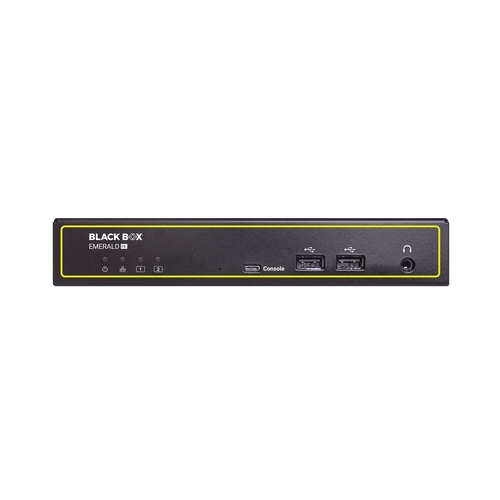

(1) Emerald PE DisplayPort Dual-Head Transmitter
(1) Power Supply
(1) Power Cord
(1) USB Type A to B, M/M
(2) Display Port Cables, M/M
(1) Insert to reference BlackBox.com for resources
